Designed with versatility in mind, the unique STS drum catch can handle, among others, tight-head, open-top, L-ring and MAUSER-style drums with ease; to adjust the catch setting operators simply adjust the position of the top hook. For lifting very unusual drums such as plastic screw-top drums, or bulbous plastic barrels we can offer different attachments and adapters for our drum lifters. See our drum suitability document for more information on compatible drum types or alternatively please get in touch.
Key product features
Stainless-steel ladder rack
Stainless-steel ladder rack
The ladder rack is where the drum gripping catch is mounted on the front of the drum lifter. By affixing the catch in different positions, the unit is able to easily cater for drums of different heights. Moving the catch up and down is easy and allows one unit to be used for all drum lifting activities. Should drums need to be lifted onto higher platforms such as custom containment bunds or other machinery, we can offer taller lift heights and therefore taller ladder racks to suit.
Rear-wheel steering
Rear-wheel steering
Counterbalance drum lifters contain metal shot in the rear of the unit to offset the weight of a heavy drum being lifted at the front of the unit. Due to the increased weight of a counterbalanced truck (vs a straddle drum lifter) it is important that the steering assembly is designed to make moving the unit as easy as possible. The single wheel steering and low rolling resistance wheels make pushing and pulling this drum lifter easy for operators of all sizes.
Manual hydraulic lift pump
Manual hydraulic lift pump
Each hydraulic pump is manufactured by hand in the UK. Quality components are used making the pumps extremely reliable and long-lasting. On a stainless steel drum lifter, the pump assembly is shrouded in stainless steel, this protects it from water ingress and other debris found in the work environment. The pump is operated by hand by pulling an upright lever back and forth. The operation of the pump is easy and the force required to lift a drum is low; this means the drum lifter can be used by all staff with ease. Drums can be lowered back down in a controlled manner by turning a manual control valve.
Safe working load (SWL) and drum lifting capacity
Safe working load (SWL) and drum lifting capacity
We can offer this unit in two configurations depending upon the weight of the drums being handled and the amount of available space. A 250kg model can be provided, this is the most popular option; alternatively, we can supply a 350kg model which is 230mm longer overall. The reason we do this is that some commercial spaces are tight and hence a longer drum lifter may not fit in the area. All our drum lifters are overload tested in our UK factory to 150% of the load capacity demonstrating how strong, stable and compliant they are.

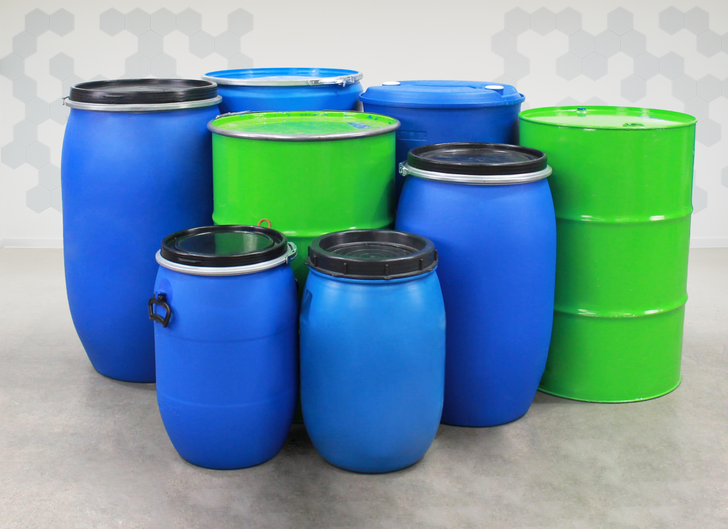

Drum suitability
Drum suitability
The Counterbalance Drum Lifter can lift a wide selection of drum types and sizes, which is useful if your company uses different drum types in different areas. For details about the drums with which this product is compatible, please review the drum suitability document below. If any drums you use are not shown in the specification, contact us and we can offer advice and guidance relating to these drums.
ATEX / UKEX-certified model for Zone 1, 2, 21 and 22 (optional)
ATEX / UKEX-certified model for Zone 1, 2, 21 and 22 (optional)
As with all our drum handling equipment, we can offer ATEX and UKEX-certified equipment for use in hazardous zoned areas. Our 'Ex' rated drum lifters are suitable for use in zones 1, 2, 21 and 22. Each unit is designed to ensure that a path to ground is always present; this is achieved by utilising anti-static wheels and earthing chains. Our ATEX / UKEX equipment is supplied with a Declaration of Conformity which states compliance with the directives and relevant British and ISO Standards.
Specification
DTP08-250kg-R500-SS Stainless Steel Counterbalance Drum Lifter
-
Safe working load (SWL)
250kg
-
Pallet straddle
N/A
-
Pallet approach
Approaches any flat side of a pallet, no legs in front of the lifter
-
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
-
Drum gripping catch
Adjustable catch for different drum lips, catch is also height adjustable
-
Lift stroke
500mm
-
Under-drum clearance
370mm
-
Lifting system
Hydraulic 13cc hand-operated aluminium pump with lowering valve and stainless steel shroud
-
Guarding
Shatterproof clear polycarbonate
-
Construction
Stainless steel 304-grade chassis, steel ram with stainless steel shroud (sealed)
-
Metal preparation
Aqua blasted and vibro-polished stainless steel parts
-
Surface finish
Smooth clean stainless steel finish
-
Front wheel type
Fixed 160mm, precision bearings
-
Front wheel material
Aluminium centred, polyurethane tyres
-
Rear wheel type
Outrigger 100mm castors and rear 160mm steerable wheel both with precision bearings
-
Rear wheel material
Aluminium centred, polyurethane tyres
-
Compliance
CE / UKCA
DTP08-250kg-R500-SS-Ex ATEX / UKEX Stainless Steel Counterbalance Drum Lifter
-
Safe working load (SWL)
250kg
-
Pallet straddle
N/A
-
Pallet approach
Approaches any flat side of a pallet, no legs in front of the lifter
-
Drum compatibility
Steel, plastic and fibreboard drums, 50-220 litres (incl. MAUSER drums)
-
Drum gripping catch
Adjustable catch for different drum lips, catch is also height adjustable
-
Lift stroke
500mm
-
Under-drum clearance
370mm
-
Lifting system
Hydraulic 13cc hand-operated aluminium pump with lowering valve and stainless steel shroud
-
Guarding
Anti-static shatterproof clear polycarbonate
-
Construction
Stainless steel 304-grade chassis, steel ram with stainless steel shroud (sealed)
-
Metal preparation
Aqua blasted and vibro-polished stainless steel parts
-
Surface finish
Smooth clean stainless steel finish
-
Front wheel type
Fixed 160mm, precision bearings
-
Front wheel material
Aluminium centred, polyurethane electrically conductive tyres
-
Rear wheel type
Outrigger 100mm castors and rear 160mm steerable wheel both with precision bearings
-
Rear wheel material
Aluminium centred, polyurethane electrically conductive tyres
-
Compliance
CE / UKCA
ATEX / UKEX (zones 1, 2, 21, 22)
Optional features
ATEX / UKEX option
We can offer an ATEX / UKEX version of this model, suitable for use in zone 1, 2, 21 and 22 environments.
Tall-lift model
We can provide this unit with a taller lift ram of up to 760mm lift stroke. This allows operators to place drums onto high bunds, platforms or other machinery.
Increased SWL
If you need to lift very heavy drums we can help. A 350kg model can be supplied which functions in exactly the same way as the 250kg model only it is 230mm longer.Sale or return
In the UK we can supply certain equipment on a sale-or-return basis, meaning you can use a unit on-site for seven days with no obligation to buy it once the trial period is up. Find out more here.
Technical specification
See the full technical specification for our Stainless Steel Drum Lifter (Counterbalance) for details such as weight, dimensions and load capacity.
Instruction manual
View the instruction manual for our Stainless Steel Drum Lifter (Counterbalance), which details how to safely operate and maintain the unit.
