200-Litre Drum Mixer

DME01

Our end-over-end drum mixer provides a faster method of mixing when compared with horizontal rollers. With our end-over-end drum mixing equipment, 200- to 220-litre steel, plastic and fibreboard drums with a maximum weight of 300kg can be mixed with ease. The product is useful for homogenising drum contents which have been left standing for some time. This unit is popular in many sectors, particularly in the paint, chemical and plastics industries.

Watch training video

DME01

Watch training video

Key product features

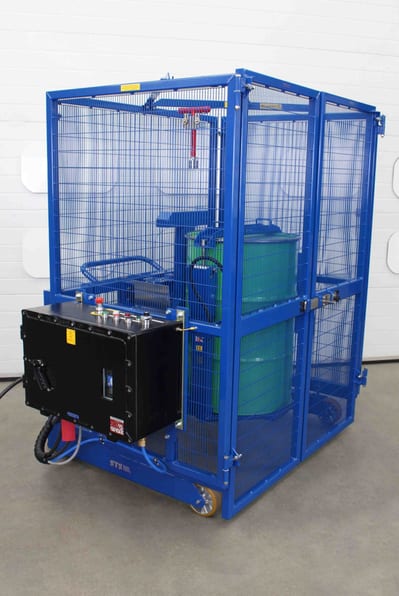

Electric control system

Our electric drum mixer features a unique control interface to provide you with precise control; the panel includes a mix timer, variable RPM controller, docking functions and LED-light indicators. The standard model rotates at speeds of up to 10 RPM; we also offer a 24 RPM model (both rated at 300kg capacity).

Operators can set the mix duration and start the mixer running, once the timer reaches zero the mixer will automatically stop mixing. Operators simply press the 'home' button to return the drum into the vertical orientation ready for unloading.

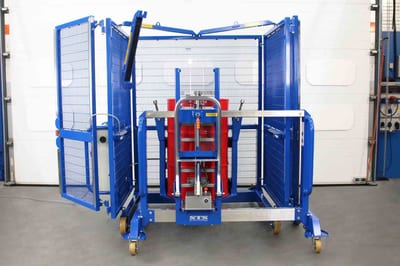

Easy drum loading

You can use any of our STS drum lifters to easily load and unload the drum mixer. Alternatively, you can use a forklift drum lifting attachment. The lifting equipment you intend to use must provide a minimum of 330mm lift height in order to place drums onto the mixer base plate. However you choose to load and unload your mixer, it is important that you do it in a safe and ergonomic way.

Robust drum-securing method

You can secure drums of 200-220 litres into the drum mixer head using the high-quality screw-top clamping bar. The adjustable clamping bar allows you to clamp drums of 860-1010mm in height effectively. Once secured, close the gates and you can begin mixing safely.

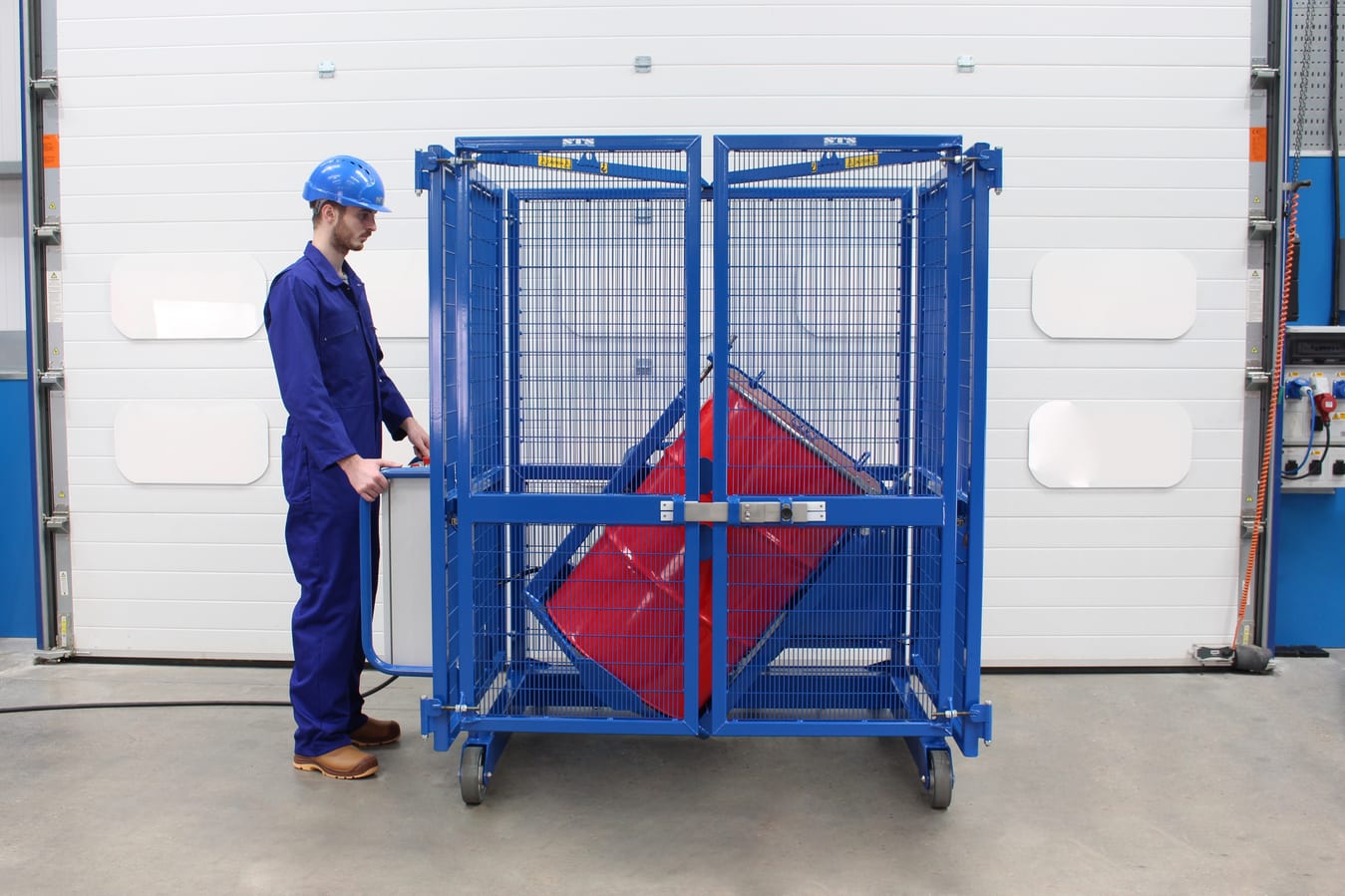

Fully compliant safety guarding

In compliance with the EU Machinery Directive, we manufacture our drum mixers with a full guarding arrangement as standard. The guarding surrounds the unit and prevents access to the drum during mixing. Guarding is a mandatory requirement and should never be overlooked when sourcing a drum mixing unit.

Safety gate interlocks

Safety is our number one priority as such this model features safety gate interlocks: only once the gates have been closed can you activate the mixing function. To protect you and your operators, should the gates be opened during a mix cycle, the unit will stop mixing immediately.

Drum suitability

Our standard securing arrangement can handle steel, plastic and fibreboard drums with heights from 860-1010mm. If you need to handle different drum sizes we offer an optional small-drum adapter (see below). Alternatively, get in touch and we can advise you on the best solution.

View drum suitability

Adjustable small drum adapter (optional)

We can offer an adjustable adapter to fit drums from 100-860mm in height into the drum mixer. You can set the adapter to different drum heights and diameters by simply moving the placement of two quick-release pins. If you require the need for a custom mixer for particular or unusual drums, we can modify this unit to suit your needs.

Specification

Rated capacity

300kg
Drum compatibility

Drums from 860mm to 1010mm in height and up to a maximum of 600mm in diameter
Rotation RPM

10 RPM (as standard)
Power requirements

Mains 230v, single phase, 16A
Duty cycle

Continuous 360° rotation
Safety gate interlock and full guarding

Yes
Emergency stop button

Yes
Mix timer and speed adjustment

Yes
Construction

Mild steel construction
Metal preparation and surface finish

Grit blasted mild steel, primer and polyester powder coated
Powder coat colour

RAL 5010 (blue)
Mobility

Wheels fitted for easy positioning, jacking feet also supplied for static positioning
Compliance

CE / UKCA

Optional features

High speed 24 RPM model

When products need mixing faster, we are able to offer a 24 RPM model which utilises a helical beval gearbox arrangement (10 RPM is standard).

Adjustable small-drum adapter

This allows you to mix small drums from 100-860mm in height. Adjust the adapter for different drum heights and diameters by moving two quick-release pins.

Stainless-steel model

Available in 304-grade stainless steel, make this drum mixer suitable for clean rooms as well as good manufacturing practice (GMP) areas.

Sale or return

In the UK we can supply certain equipment on a sale-or-return basis, meaning you can use a unit on-site for seven days with no obligation to buy it once the trial period is up. Find out more here.

Electric End-Over End Drum Mixer (DME01-230V, 10 RPM/24 RPM)

Play Video

Technical specification

See the full technical specification for our 200-Litre Drum Mixer for details such as weight, dimensions and load capacity.

view pdf

Instruction manual

View the instruction manual for our 200-Litre Drum Mixer , which details how to safely operate and maintain the unit.

view pdf
