Stainless-Steel Drum Rotator (Manual)

STM01-DRU01-SS

This manua;-hydraulic drum rotator allows operators to ergonomically lift and decant drums of various sizes. The stainless-steel 304-grade construction is ideally suited to both food and pharmaceutical environments thanks to a smooth and clean vibro-polished finish.

Watch training video

STM01-DRU01-SS

This manua;-hydraulic drum rotator allows operators to ergonomically lift and decant drums of various sizes. The stainless-steel 304-grade construction is ideally suited to both food and pharmaceutical environments thanks to a smooth and clean vibro-polished finish.

Watch training video

Key product features

Manual hydraulic pump

Manual hydraulic pump

In the base of the chassis, two manual-hydraulic 13cc hydraulic pumps supply the lifting ram with oil to raise the drum. These pumps are operated by pumping the handle at the rear of the unit. Designed to be ergonomic, the pumps require minimal force, adhering to manual handling guidelines.


Lowering the drum is achieved by turning a lowering lever anti-clockwise. For operations exceeding 10 drums per day, we advise considering our electric or pneumatic models as a powered alternative. These powered models further enhance efficiency and reduce physical fatigue if handling many drums per day.

Universal drum band

Universal drum band

Drums and barrels are available in steel, plastic, and fibreboard, each coming in various shapes and sizes. When selecting a drum tipping stacker, it's crucial to choose a unit that can manage all drum types used in your factory. Tippers limited to handling only certain drums often end up unused and abandoned. To prevent this, procurement should focus on drum tippers with adaptable and universal designs.


The STS universal drum band, equipped with this model, features an adjustable modular design suitable for a wide range of drum types and sizes. This innovative design ensures optimal contact with the drum, regardless of its size, providing a secure and safe fastening system. The adaptable band comfortably accommodates drums ranging from 350mm to 600mm in diameter, ensuring it can manage steel, plastic, and fibreboard materials effectively.

Controllable gearbox rotation

Controllable gearbox rotation

When lifting and decanting from heavy drums, maintaining control of the drum is crucial for safety. In our analyses of older machinery in the field, we've identified a common issue: many use rotation mechanisms that fail to allow operators to safely control the load during rotation. This poses significant risks to operator safety.


At STS, safety is our top priority. We have developed a self-locking rotational gearbox arrangement that greatly enhances safety compared to traditional designs. The unique self-locking feature of our worm-wheel gearbox ensures that the drum remains stationary when the handle is released. Additionally, the 120:1 gearbox ratio makes manual turning easy, accommodating operators of various sizes and strength levels. This innovative design not only improves safety but also makes operation smoother and more controlled.

ATEX / UKEX-certified for gas and dust zones 1, 2, 21 and 22 (optional)

ATEX / UKEX-certified for gas and dust zones 1, 2, 21 and 22 (optional)

If you operate within a zoned flammable or explosive area, rest assured, our expertise in ATEX-certified equipment positions us to meet the stringent demands of large multinational companies.


All our manual-hydraulic and pneumatic-hydraulic drum rotators are provided with both ATEX and UKEX certification, ensuring they are safe for use in zones 1, 2, 21, and 22. Our 'Ex-rated' units are meticulously crafted to maintain electrical continuity, vital for preventing ignition in hazardous environments. Each piece of equipment is accompanied by a Declaration of Conformity, affirming compliance with all relevant British and ISO Standards.

Specification

STM01-DRU01-SS Stainless-Steel Drum Rotator (Manual)

  • Safe working load (SWL)

    350kg

  • Functions

    Manual lift/lower, manual rotation, manual push/pull

  • Manual Hand Pump

    Manual-hydraulic hand pump to lift, manual lowering valve to lower, manual rotation, manual push/pull

  • Lift height

    1400mm

  • Tipping clearance

    1400mm at 15° tip angle / 1325mm at 30° tip angle (205 litre drum)

  • Drum compatibility

    Steel and plastic drums, 50-220 litres (incl. MAUSER drums)

  • Band assembly

    Segmented adjustable/universal band with 50mm stainless steel ratchet and polyester strap

  • Additional drum securing

    Rim clamp is included which grips the top edge of the drum preventing slippage

  • Rotation gearbox

    Worm-wheel, self-locking with 120:1 ratio and manual handle

  • Construction

    Stainless steel 304-grade chassis, steel zinc/nickel-coated hydraulic lift ram, aluminium hand pump assembly in stainless steel shroud

  • Metal treatment

    Vibro-polished stainless steel parts, smooth clean finish

  • Guarding

    Polycarbonate shatterproof clear guarding

  • Leg dimensions

    Inside straddle width 850mm, total outside width 1080mm

  • Front wheels

    Two fixed 160mm wheels, plastic centred with polyurethane tyres and precision bearings

  • Rear wheels

    Two tiller steered 160mm wheels, plastic centred with polyurethane tyres and precision bearings

  • Noise

    Less than 76 dBA

  • Compliance

    CE / UKCA

STM01-DRU01-SS-Ex ATEX Stainless-Steel Drum Rotator (Manual)

  • Safe working load (SWL)

    350kg

  • Functions

    Manual lift/lower, manual rotation, manual push/pul

  • Manual Hand Pump

    Manual-hydraulic hand pump to lift, manual lowering valve to lower, manual rotation, manual push/pull

  • Lift height

    1400mm

  • Tipping clearance

    1400mm at 15° tip angle / 1325mm at 30° tip angle (205 litre drum)

  • Drum compatibility

    Steel and plastic drums, 50-220 litres (incl. MAUSER drums)

  • Band assembly

    Segmented adjustable/universal band with 50mm stainless steel ratchet and polyester strap

  • Additional drum securing

    Rim clamp is included which grips the top edge of the drum preventing slippage

  • Rotation gearbox

    Worm-wheel, self-locking with 120:1 ratio and manual handle

  • Construction

    Stainless steel 304-grade chassis, steel zinc/nickel-coated hydraulic lift ram, aluminium hand pump assembly in stainless steel shroud

  • Metal treatment

    Aqua blasted and vibro-polished stainless steel parts, smooth clean finish

  • Guarding

    Anti-static polycarbonate shatterproof clear guarding

  • Leg dimensions

    Inside straddle width 850mm, total outside width 1080mm

  • Front wheels

    Two fixed 160mm wheels, plastic centred with polyurethane tyres and precision bearing

  • Rear wheels

    Two tiller-steered 160mm wheels, plastic centred with polyurethane tyres and precision bearings

  • Noise

    Less than 76 dBA

  • Compliance

    CE / UKCA ATEX / UKEX (zones 1, 2, 21 and 22)

Optional features

ATEX / UKEX option

We can offer an ATEX / UKEX version of this drum rotator model, suitable for use in zone 1, 2, 21 and 22 environments.

Variable leg dimensions

When machinery integration is critical we can modify leg dimensions of our drum tippers to suit your facility.

Fixed-size drum band

IIf you’re only handling 200- to 220-litre steel and plastic drums, our fixed over-centre drum band makes securing drums even easier.

Load-cell weighing system

With our load-cell system you can weigh drums while you handle them. A digital read-out provides real-time weight information ideal for batch production.

Very small drum insert

If you’re using this drum handling equipment for drums smaller than 50 litres, we can provide an insert that allows you to lift small containers with the universal drum band.

Sale or return

In the UK we can supply certain equipment on a sale-or-return basis, meaning you can use a unit on-site for seven days with no obligation to buy it once the trial period is up. Find out more here.

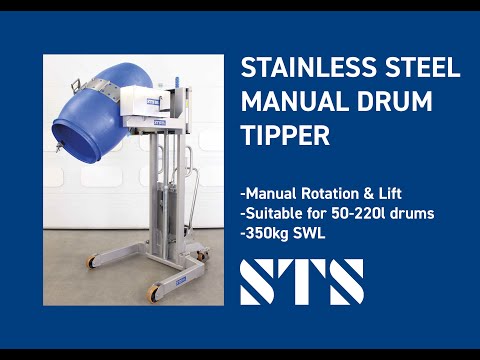

Manual Drum Tipper (STM01-DRU01-SS)
Play Video

Technical specification

See the full technical specification for our Stainless-Steel Drum Rotator (Manual) for details such as weight, dimensions and load capacity.
view pdf

Instruction manual

View the instruction manual for our Stainless-Steel Drum Rotator (Manual), which details how to safely operate and maintain the unit.
view pdf
